Descrizione
Codice: TL-ARCHER-TX10E
TX10E

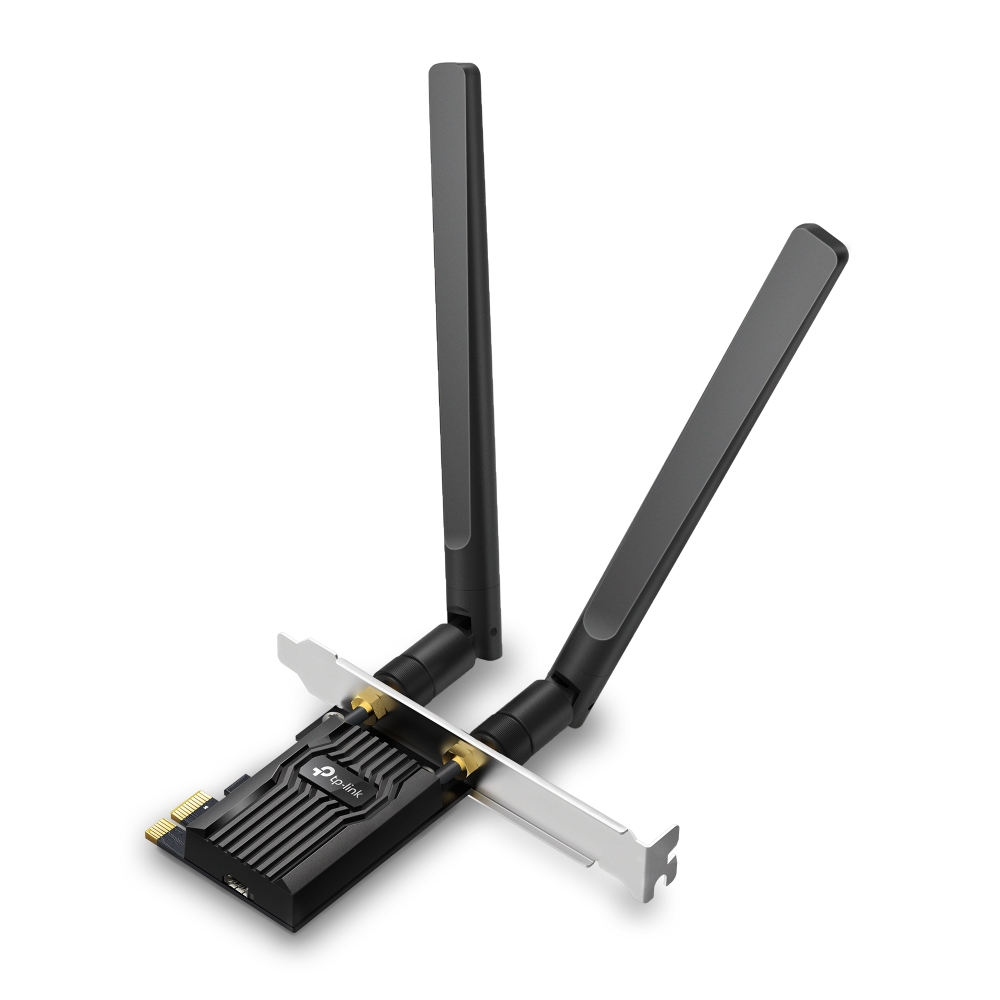

AX900 Wi-Fi 6 Bluetooth PCIe Adapter
Arm Your PC with Next-Gen Wi-Fi Technology
Enhanced Reliability and Security
Unrivaled Dual-Band Speed: 600 Mbps + 287 Mbps †
Wider Signal Coverage with High Gain Antennas △
Low-Latency Gaming: OFDMA and MU-MIMO supported *
Cutting-Edge Bluetooth 5.3*
Highlights
Arm Your PC with Wi-Fi 6 Technology – Bluetooth 5.3
Improved Security — WPA3
Latest security enhancements provide better protection for personal password safety. **
Ultra-Low Latency
OFDMA + MU-MIMO ensure a more efficient Wi-Fi connection, reducing latency for faster speeds. *
Superior Wi-Fi Reception
Equipped with 1024-QAM and MU-MIMO for faster and clearer Wi-Fi reception. *
TP-Link AX900 Wi-Fi 6 Bluetooth PCIe Adapter
Bluetooth 5.3 improves reliability and security, ensuring robust connections with controllers, headphones, keyboards, etc. ***
Wi-Fi 6 guarantees extreme speeds, ultra-low latency, and uninterrupted connections, unlocking the full potential of Wi-Fi 6 routers. †
Wireless Specifications
Wireless Standards
-
IEEE 802.11a/n/ac/ax (5 GHz)
-
IEEE 802.11b/g/n/ax (2.4 GHz)
Signal Rate
5 GHz
-
11ax: up to 600 Mbps (dynamic)
-
11ac: up to 433 Mbps (dynamic)
-
11n: up to 150 Mbps (dynamic)
-
11a: up to 54 Mbps
2.4 GHz
-
11ax: up to 287 Mbps (dynamic)
-
11n: up to 200 Mbps (dynamic)
-
11g: up to 54 Mbps
-
11b: up to 11 Mbps
Reception Sensitivity
5 GHz
-
11a 6M: −94 dBm
-
11ax HE80 MCS11: −59 dBm
-
11ax HE80 MCS0: −87 dBm
2.4 GHz
-
11g 6M: −95 dBm
-
11ax HE40 MCS11: −65 dBm
-
11ax HE40 MCS0: −93 dBm
WLAN Features
Transmit Power
-
5 GHz: 28 dBm (FCC) / 23 dBm (CE) (EIRP)
-
2.4 GHz: 24 dBm (FCC) / 20 dBm (CE) (EIRP)
Wireless Modes
-
Client mode, Hotspot mode
Interface
-
PCI Express x1 / x4 / x8 / x16
Wireless Security
-
WEP, WPA / WPA2 / WPA3, WPA-PSK / WPA2-PSK
Modulation Technology
-
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024-QAM
Bluetooth Features
-
Standards and Protocols: Bluetooth 5.3 / 5.2 / 5.0 / 4.2 / 4.0
-
Interface: F_USB 2.0
-
Antennas: Two High Gain Dual-Band Antennas
Hardware
Dimensions
-
120.8 × 78.5 × 20.9 mm (4.76 × 3.09 × 0.82 in)
Package Contents
-
AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E
-
Two High Gain Dual-Band Antennas
-
Bluetooth Header Cable
-
Quick Installation Guide
-
Resource CD
System Requirements
-
Windows 10 / 11 (64-bit) §
Environment
-
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
-
Operating Humidity: 10% ~ 90% non-condensing
-
Storage Humidity: 5% ~ 90% non-condensing
Certifications: FCC, CE, RoHS
Colore: Black
